Washing capacity
2500 dishes / hour 2500 cups / hour
Number of people
200-800
Applicable place
Western restaurant, fast food restaurant.
Applicable place

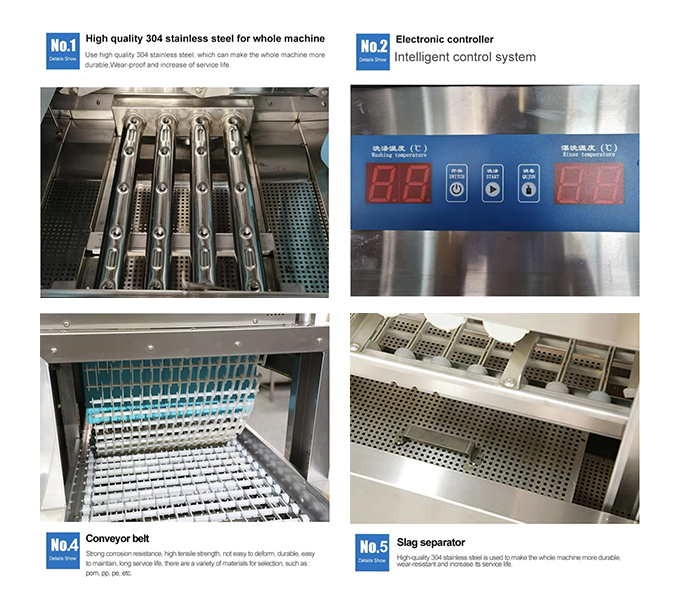

Chain conveyor belt, better secured baskets
The cleaning speed is fast and the quantity is large.
Technical Parameters技术参数：
Equipment model设备型号 | J-PF3000 | J-PFL3000H1 |
Dimension (L*W*H) (mm) 外形尺寸 | 1600*880*1800 | 2800*880*1880 |
Inlet/outlet size (mm) 进出口尺寸 | Inlet 500/Outlet 700 | Inlet 500/Outlet 700 |
Cleaning cylinder model (mm) 清洗缸型号 | Single cylinder 800mm | Single cylinder 800mm |
Cleaning cylinder capacity (L) 清洗缸水箱容量 | 68L | 68L
|
Electric heating tube of cleaning cylinder (KW) 清洗缸电热管 | 0-9KW | 0-9KW
|
Water pump motor of cleaning cylinder (KW) 清洗缸水泵电机 | 1.5KW | 1.5KW
|
Stereoscopic spray(mm) 立体式喷淋 | P-400mm | P-400mm |
Water consumption of stereoscopic spray (L/basket) 立体式喷淋耗水量 | 400L/H | 400L/H
|
Electric heating tube of stereoscopic spray (KW) 立体式喷淋电热管 | 0-27KW | 0-27KW
|
Drying section (KW) 烘干段 | / | 10KW |
Transmission speed (m/min) 传送速度 | 1-3m/min frequency control | 1-3m/min frequency control |
Transmission power (KW) 传送功率 | 0.2KW | 0.2KW |
Washing amount (PCS) 洗涤量 | 2900PCS | 2900PCS |
Total electric power (KW) 总电功率 | 2-38KW | 12-50KW |
Gas/steam total power (kW) 燃气蒸汽总功率 | 1.7KW
| 13.7KW |
